Answer

Customer

Trying to replace entire tensioner assembly(16620-0P030) on 3.5L 2GR-FKS engine. Looking at new tensioner assy, there are 2 front facing bolts for mounting, but there is also a threaded hole facing towards the AC compress/alternator. I have removed the 2 bolts on the front pulley side of tensioner assy, but am unable to pry the assembly out. It appears the tensioner is still being held in by something. Looking for info regarding what the other threaded hole in tensioner assy is for. Does one of the AC compressor or alternator bolts thread in there? Thanks for any help.

Last updated
Ramy De Jesus
Toyota Mechanic

Hello and welcome to ExpertHelp.com! My name is Ramy De Jesus and I'm going to do everything in my power to answer your question to your full satisfaction!

Before we get started, I want to remind you ExpertHelp.com is an independent professional support company. We are not associated with  Toyota nor are we paid to provide support on their behalf. However, we have helped hundreds of customers with similar questions and believe we can help you too. OK, let’s get started! :)

I’m available to chat now. Please let me know that you are ready by posting a response. I’ll leave my chat session open for the next 15 minutes or so and wait for your reply. If I don’t catch you this time, please respond with a few times (including your timezone) that work best for you and we can connect then.

Posted
Ramy De Jesus
Toyota Mechanic

Thank you for choosing ExpertHelp.com. Before we proceed can you provide me the year and model of your vehicle so I can properly assist you. When you're ready, please type your responses on this page and then click on the Blue Send Response button to post your response. I will be standing by for your response.

Posted
Customer

2017 Sienna LE AWD.  2GR-FKS 3.5l slightly different than previous gen 2GR-FE.

I have scoured internet and forums, and have been unable to find an answer to this question.  I'm guessing that only a Toyota mechanic, tha thas actually replaced one of these tensioner assemblies, will be able to answer my question - that's why i'm here.

I'm trying to not remove the fan assy, alternator, etc.  I just want to know, preferably with a diagram, which mounting bolt to remove to free up the tensioner.  Pics attached.

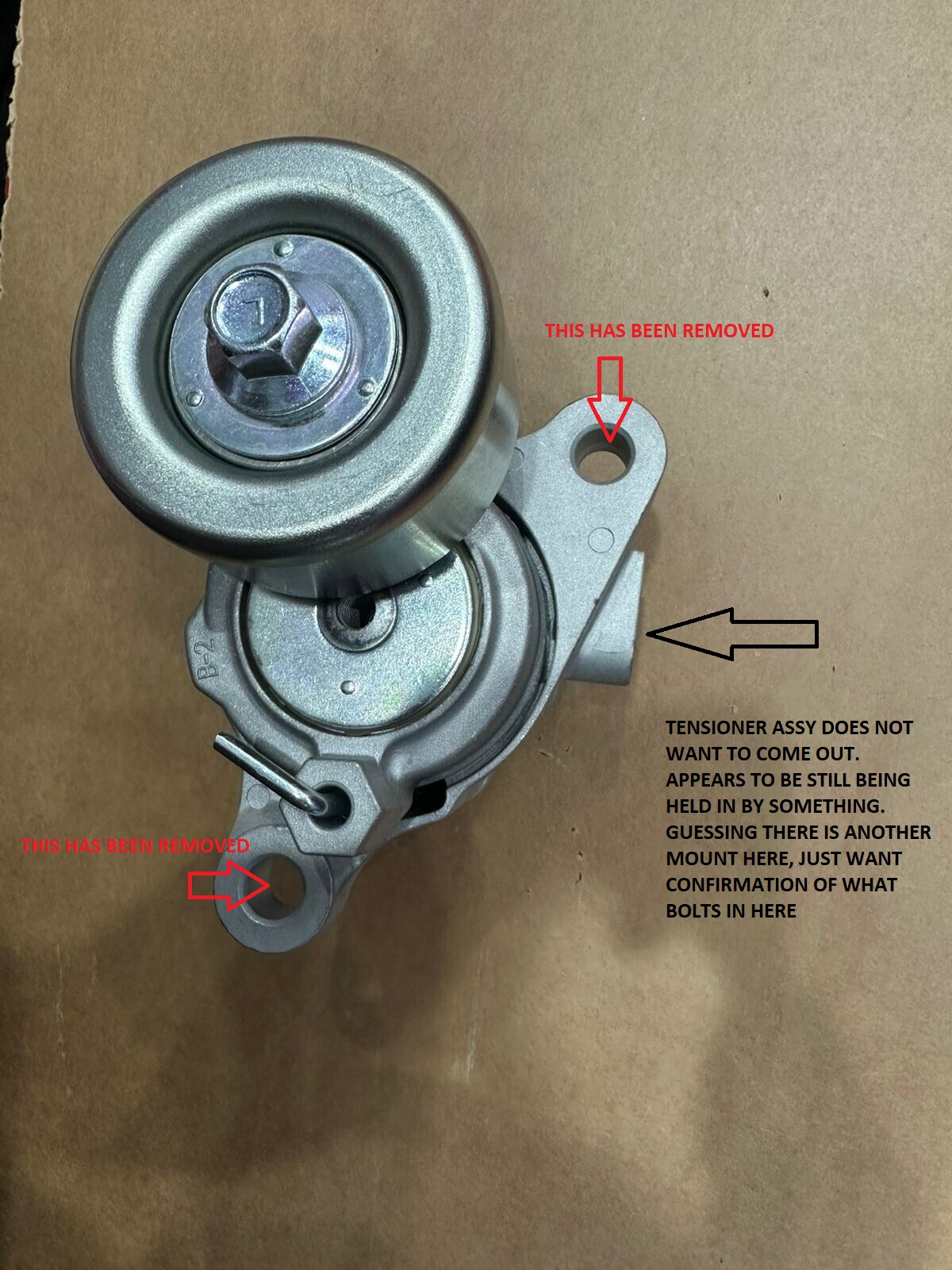

tensioner assy front

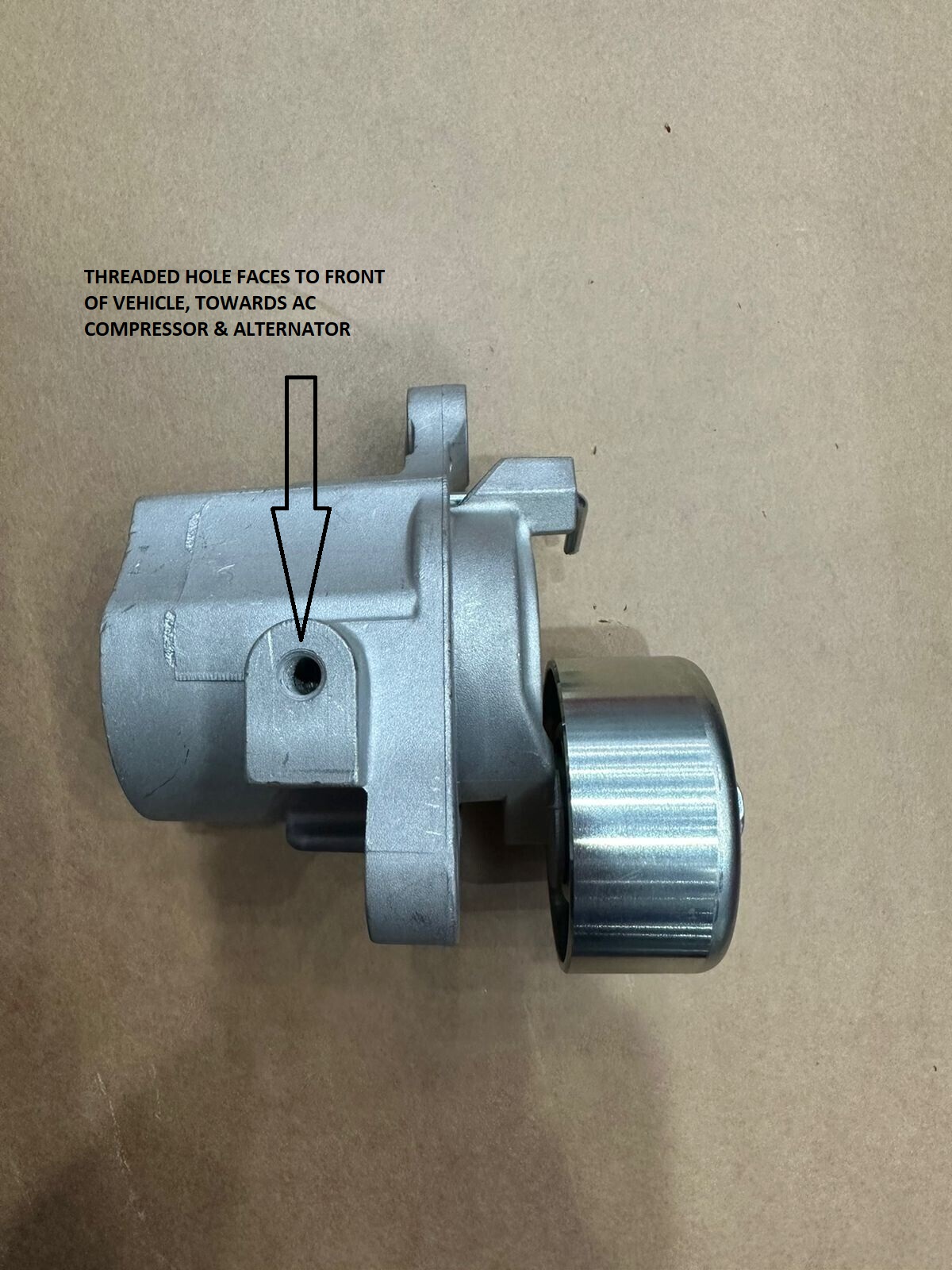

tensioner assy forward facing

Thanks

Posted
Ramy De Jesus
Toyota Mechanic

Thank you for your response. Do you actually need to replace the whole assembly or is it possible to replace the tensioner pulley only to resolve your issue? Because normally the bearing from the pully only the one causing the issue for this and no need to replace the whole assembly.

Posted
Customer

whole assembly.  there was a time i could have only replaced the pulley, but after prying on it for a few days, it should be replaced.

Thanks

Posted
Customer

any updates?  Like I said in my initial question creation, i'm looking to chat with a technician that has actually had to remove the tensioner assembly as a whole.  Thanks

Posted
Jenny Muralidharan
Customer Support

Hi Richards, thank you for your patience. We understand your request. Ramy De Jesus, your assigned Expert will be in touch with you at the earliest here with a reply.

Posted
Customer

I found the answer to my question.  On Toyota 2GR-FKS engines, the tensioner assembly is held in by the top passenger side mounting bolt for the AC compressor.  It is a stud with a nut on the end of it.  The stud screws down into the side of the tensioner assembly, and then a nut holds the AC compressor tight up against the tensioner.  It is possible to double-nut that stud and remove the entire stud to then free up the tensioner assembly.  Install is reverse order.

Posted
Jenny Muralidharan
Customer Support

Hi Richards, we are happy you found the answer. We also regret we were not able to assist you any further. Should you need any billing related assistance, please email us at s**t@experthelp.com and we'll help you most appropriately.

Posted
